277V Only Surface Mount Disk
AX506-277VAX508-277VAX506-16WAX508-32W
- Replaces 6” & 8” Recessed Can Lights - 277v ONLY - Retrofit Kit Available
- LED flush mounts add class to any decor. Low profile design ideally suited for showers, lobbies, corridors, conference rooms, common spaces, kitchenettes, and interiors in commercial, hospitality, retail, and residential environments.
Model numbers
| Model | Description |
|---|---|
| AX506-277V | 277V Only Surface Mount Disk; 1.2” Height x 7.4” O.D.; 16W; 1,000 lumens |
| AX508-277V | 277V Only Surface Mount Disk; 1.2” Height x 9.5” O.D.; 32W; 1,900 lumens |
| AX506-16W | Available Finishes: BN • ORB • WH; Kelvin/CCT: 30K • 40K; Voltage: AC 277V; Dimensions: 7.4” OD x 1.2” H; Lumens: 1,000; CRI: 90; Dimmable: No; Special Functions: Surface, 277V ONLY |
| AX508-32W | Available Finishes: BN • ORB • WH; Kelvin/CCT: 30K • 40K; Voltage: AC 277V; Dimensions: 9.5” OD x 1.2” H; Lumens: 1,900; CRI: 90; Dimmable: No; Special Functions: Surface, 277V ONLY |
Specifications
| UL or ETL Listing | Wet Locations |
|---|---|
| Certifications | ETL |

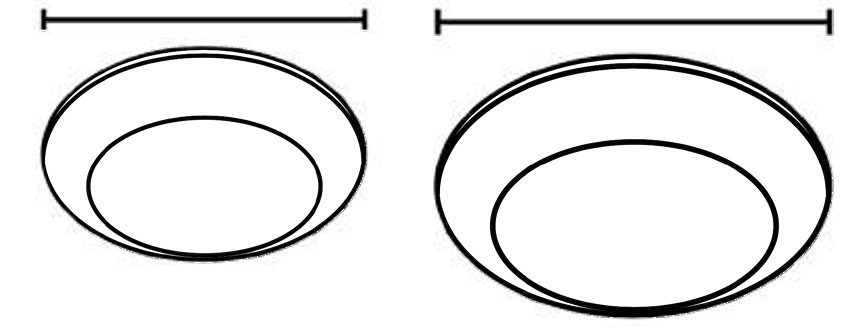

| Dimensions | AX506-277V = 1.2” Height x 7.4” O.D. AX508-277V = 1.2” Height x 9.5” O.D. |
| Housing | Stamped Steel |
| Lens/Diffuser | Opal Acrylic - Twist On/Off |
| Voltage | AC 277v - Driverless |
| Wattage | AX506-277V = 16W AX508-277V = 32W |
| Lumens | AX506-277V = 1,000 AX508-277V = 1,900 |
| CRI | 80 |
| Kelvin | 30K |
| Dimmable | Non-Dimmable |
| Operating Temp. | (-20˚ to -40˚C) (25˚C Nominal) |
| Surge Protection | 1 kv |
| Mounting | Ceiling, includes all necessary hardware. Mounts to most 4” x 4” J boxes. Suitable for installation within closets and/or storage spaces per NEC code 410.16. |
Options and ordering
Wattage
- 16W = 16 Watts
- 32W = 32 Watts
Kelvin/CCT
- 30K = 3000˚K
- 40K = 4000˚K
Finish
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
- WH = White
Options
- AX888 = Recessed Can Retrofit Kit
Ordering example
AX508-277V-32W-30K-BN-AX888
