6” Disk w/ Emergency Back-Up
AXEM506AXEM506-BATTAXEM506-TRIM
- Replaces 6” Recessed Can Light - Retrofit Kit Available
- LED flush mounts add class to any decor. Low profile design ideally suited for showers, lobbies, corridors, conference rooms, common spaces, kitchenettes, and interiors in commercial, hospitality, retail, and residential environments.

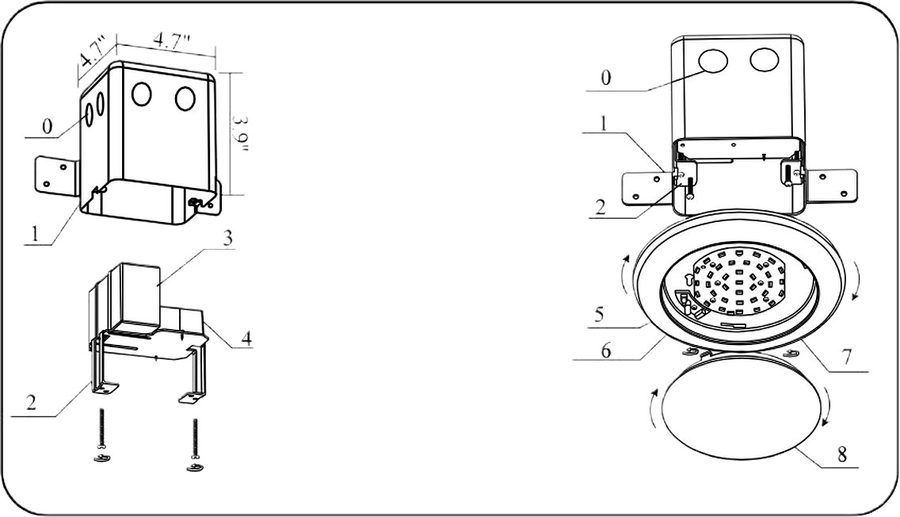

- 0. Knock-Outs
- 1. J-Box
- 2. Installing Frame
- 3. Battery
- 4. Electronic Control
- 5. Indicator Light
- 6. Test Switch
- 7. Surface Mount
- 8. Diffuser
- Trim does not fit in all J-Boxes
- Will not fit in pancake J-Boxes.
Model numbers
| Model | Description |
|---|---|
| AXEM506 | 6” Disk w/ Emergency Back-Up; Available Finishes: BN • ORB • WH; Kelvin/CCT: 30K • 40K; Voltage: AC 120V; Dimensions: 7.4” OD x 1.2” H; Lumens: 1,095; CRI: 81; Dimmable: No; Special Functions: Emergency Battery Back-up |
| AXEM506-BATT | Shipped at Rough-In |
| AXEM506-TRIM | Shipped at Trim Out |
Specifications
| UL or ETL Listing | Wet Locations |
|---|---|
| Certifications | Title 24, JA8 Certified DLC Certified |

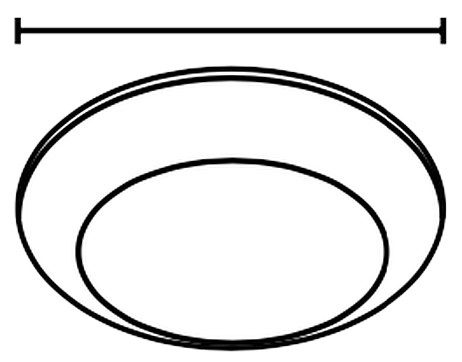

| Dimensions | 1.2” Height x 7.4” Outside Diameter |
| Housing | Stamped Steel |
| Lens/Diffuser | UV Rated Polycarbonate |
| Voltage | AC 110-120v - Driverless |
| Wattage | 15w (EM: 6w) |
| Lumens | 1,095lm (EM: 400lm) |
| CRI | 81 |
| Kelvin | 30K, 40K |
| Emergency Mode | Up to 90 Minutes |
| Flicker | (T24, JA8) Flicker Free |
| Dimmable | Tri-arc, T24, JA8 |
| Operating Temp. | (-20˚ to -40˚C) (25˚C Nominal) |
| Surge Protection | 1 kv |

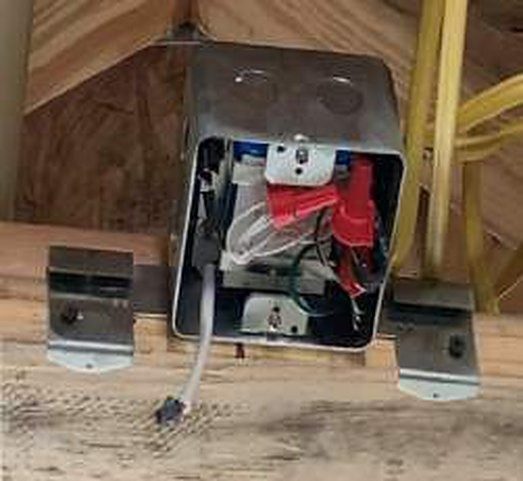

| Mounting | Requires included battery rough-in housing (AXEM508-BATT). |
Options and ordering
Wattage
- 15W = 15 Watts
Kelvin/CCT
- 30K = 3000˚K
- 40K = 4000˚K
Finish
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
- WH = White
Ordering example
AXEM506-15W-30K-BN
