Surface Mount Disk
AX508AX508-30W
- Replaces 8” Recessed Can Light - Retrofit Kit Available
- LED flush mounts add class to any decor. Low profile design ideally suited for showers, lobbies, corridors, conference rooms, common spaces, kitchenettes, and interiors in commercial, hospitality, retail, and residential environments.
Model numbers
| Model | Description |
|---|---|
| AX508 | Surface Mount Disk |
| AX508-30W | Available Finishes: BN • ORB • WH; Kelvin/CCT: CCT Selectable (30K/40K); Voltage: AC 120V; Dimensions: 9.5” OD x 1.2” H; Lumens: 2,200; CRI: 90; Dimmable: Tri-arc; Special Functions: Surface, Wet, Retrofit |
Specifications
| UL or ETL Listing | Wet Locations |
|---|---|
| Certifications | Title 24, JA8 Certified DLC Certified Energy Star - Qualified |

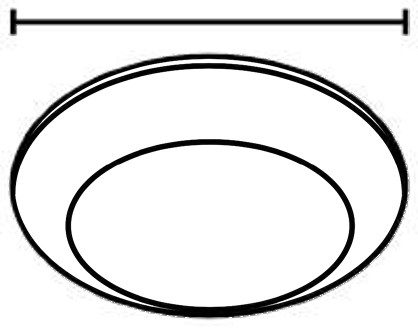

| Dimensions | 1.2” Height x 9.5” Outside Diameter |
| Housing | Stamped Steel |
| Lens/Diffuser | Opal Acrylic - Twist On/Off |
| Voltage | AC 110-120v - Driverless |
| Wattage | 30w |
| Lumens | 2200 |
| CRI | 80 |
| Kelvin | CCT Selectable (30K, 40K) |
| Flicker | (T24, JA8) Flicker Free |
| Dimmable | Tri-arc, T24, JA8 |
| Operating Temp. | (-20˚ to -40˚C) (25˚C Nominal) |
| Surge Protection | 1 kv |
| Mounting | Ceiling, includes all necessary hardware. Mounts to most 4” x 4” J boxes. Suitable for installation within closets and/or storage spaces per NEC code 410.16. |
Options and ordering
Wattage
- 30W = 30 Watts
Kelvin/CCT
- CCT = Selectable (30K, 40K)
Finish
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
- WH = White
Options
- AX888 = Recessed Can Retrofit Kit
Ordering example
AX508-30W-CCT-BN-AX888
