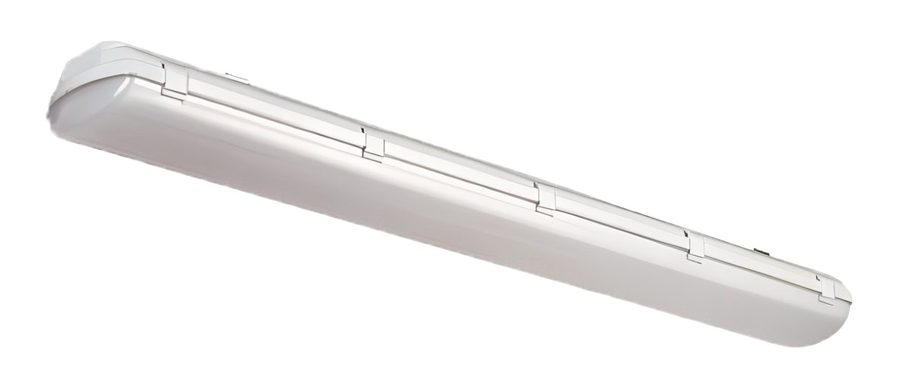

LED Enclosed and Gasketed, Vapor-Tight Utility Light
AXUL838AXUL842
Ideal for parking garages, cold storage facilities, food processing facilities, dusty or wet environments, stairwells, indoor equestrian facilities, canopies, and workshops.
Model data
| Part | Wattage | EM Wattage | Lumens | EM Lumens | Dimensions |
|---|---|---|---|---|---|
| AXUL838 | 25W; 40W | 10W; 16W | 3,250lm; 5,200lm | 1,300lm; 2,080lm | 6.75”W x 3.88”H x 26.88”L |
| AXUL842 | 40W; 60W; 75W | 16W; 24W; 30W | 5,200lm; 7,072lm; 9,750lm | 5,200lm; 2,828lm; 3,900lm | 6.75”W x 3.88”H x 50.75”L |
Specifications
| UL or ETL Listing | CE, UL. cUL listed |
|---|---|
| Listing | Wet Locations (IP65) |
| Housing | Weather resistant & corrosion free polycarbonate |
| Lens/Diffuser | |
| Voltage | 120v - 277v |
| Light Source | Integrated LED |
| CRI | >80 |
| Kelvin | Selectable CCT (30K, 40K, 50K) |
| Dimmable | 0-10v |
| Ambient Temp. | Suitable for 30˚C temperatures. |
| Mounting | Surface or Suspended Mount. |
Options and ordering
Wattage
- 25W = 25 watt Integrated LED
- 40W= 40 watt Integrated LED
- 60W = 60 watt Integrated LED
- 75W = 75 watt integrated LED
Kelvin/CCT
- CCT = Selectable CCT (30K, 40K, 50K)
Finish
- WH = White
Options
- MS = Microwave Sensor
- DMS Dimming Microwave Sensor
- EM = Emergency Back-up
Ordering example
AXUL12-7.5W-30K-WH-MS
