LED Strip Light
AXUL825AXUL826AXWG-2AXWG-4
Ideal for apartments, motels, and condos. Perfect for kitchens, utility rooms, closets, schools, garages, and offices. General purpose lighting in retail stores and commercial environments.
Model numbers
| Model | Description |
|---|---|

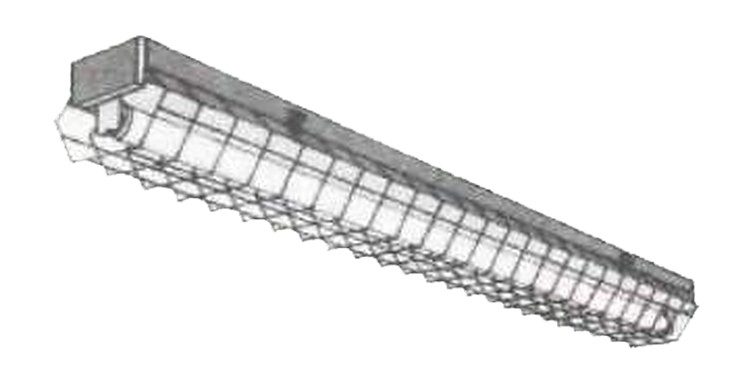

| AXWG-2 | Optional Wire Guard, 2 Foot. AXWG-2 = Wire Guard for 2 ft. |
| AXWG-4 | Optional Wire Guard, 4 Foot. AXWG-4 = Wire Guard for 4 ft. |
Model data
| Part | Wattage | Lumens | Kelvin | Dimensions |
|---|---|---|---|---|
| AXUL825 | 18W (2x 9W) | 1,800lm | 30K; 40K; 50K | 4.75”W x 3.25”H x 24.25”L |
| AXUL826 | 36W (2x 18W) | 3,600lm | 30K; 40K; 50K | 4.75”W x 3.25”H x 48”L |
Specifications
| UL or ETL Listing | Wet Locations |
|---|---|
| Housing | Die formed heavy gauge steel |
| Voltage | 120v-277v |
| Light Source | LED T8 tube (sold separately) |
| CRI | >80 |
| Kelvin | 30K, 40K, 50K |
| EM Back-up | 90 Minutes minimum operation |
| Mounting | Units may be surface or pendant mounted, individually or in a continuous row. For continuous back-to-back socket mounting; insert combination end couplers into ends of adjoining units to act as a sleeve coupling and to permit use of housing as a continuous wireway. |
| Suggested lamps | LEDT800 • 30K • 80 CRI / LEDT802 • 40K • 80 CRI / LEDT803 • 50K • 80 CRI / LEDT801 • 30K • 80 CRI / LEDT804 • 40K • 80 CRI / LEDT805 • 50K • 80 CRI |
Options and ordering
Wattage
- 18W = 2x 9 watt LED T8 Tubes
- 36W = 2x 18 watt LED T8 Tubes
Kelvin/CCT
- 30K = 3000˚Kelvin
- 40K = 4000˚Kelvin
- 50K = 5000˚Kelvin
Finish
- WH = White
Options
- EM = Emergency Back-up
- AXWG-2 = Wire Guard for 2 ft.
- AXWG-4 = Wire Guard for 4 ft.
- MS = Microwave Sensor
Ordering example
AXUL825-18W-30K-WH-AXWG-2
