Builder Model Wrap
AXUL800AXUL801
Ideal for apartments, motels, and condos. Perfect for kitchens, utility rooms, closets, schools, garages, and offices.
Model data
| Part | Wattage | Lumens | Kelvin | Dimensions |
|---|---|---|---|---|

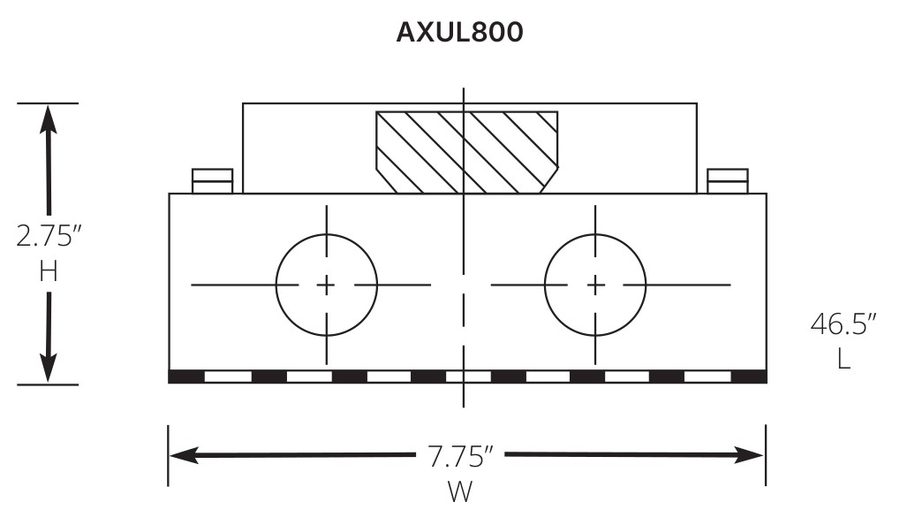

| AXUL800 | 36W (2x 18W) | 3,600lm | 30K, 40K, 50K | 7.25”W x 2.75”H x 46.5”L |
| AXUL801 | 72W (4x 18W) | 7,200lm | 30K, 40K, 50K | 13”W x 2.75”H x 48”L |
Specifications
| UL or ETL Listing | ETL - Damp Locations |
|---|---|
| Housing | Heavy gauge cold rolled steel |
| Ends | Injection solid polycarbonate end caps |
| Lens/Diffuser | Frosted Prismatic Acrylic |
| Voltage | 120v |
| Light Source | LED T8 (sold separately) |
| CRI | 80 |
| Kelvin | 30K, 40K, 50K |
| EM Back-up | 90 Minutes minimum operation |
| Mounting | Surface or Suspension Mount. |
| Suggested lamps | LEDT801 • 30K • 80 CRI / LEDT804 • 40K • 80 CRI / LEDT805 • 50K • 80 CRI |
Options and ordering
Wattage
- 36W = 2x 18 watt LED T8 Tubes
- 72W = 4x 18 watt LED T8 Tubes
Kelvin/CCT
- 30K = 3000˚Kelvin
- 40K = 4000˚Kelvin
- 50K = 5000˚Kelvin
Finish
- WH = White
Options
- EM = Emergency Back-up
- MS = Microwave Sensor
Ordering example
AXUL800-36W-CCT-WH-EM
