Temporary Round Disk, Jobsite Lighting
AXTD404AXTD404-10.5W-40K-WH

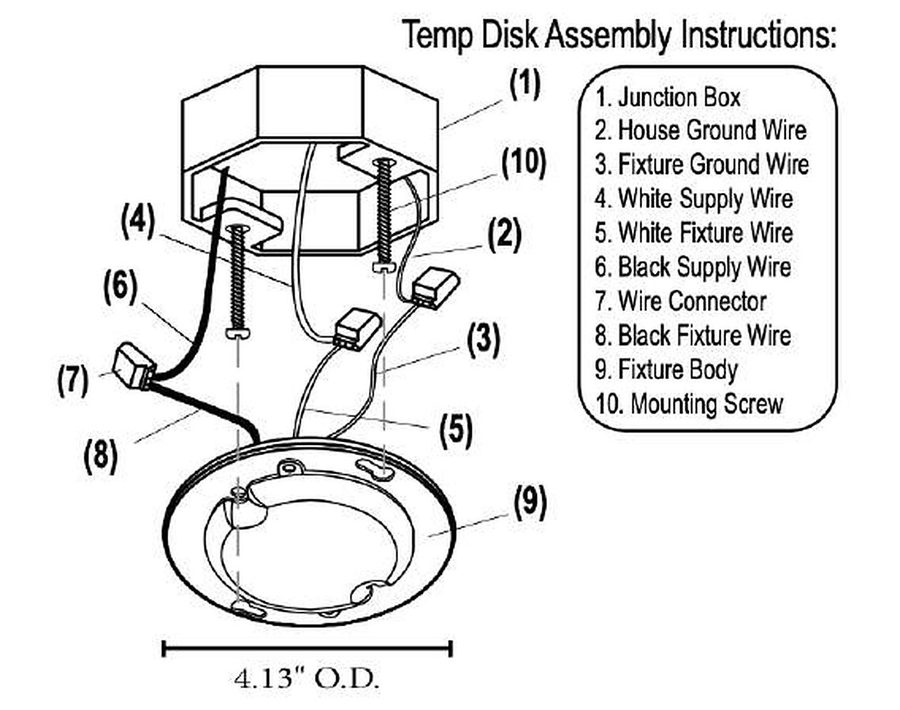

- Install over the J-Box and it doesn’t have to be removed until you are ready to install a permanent light fixture. 2 screws and quick connects make installation a breeze!
- Unlike permanent lighting, temporary lighting is installed on a job-site while working to ensure maximum illumination while working. The ability to keep the temporary fixture installed until after sheet rock is installed ensures maximum utility.
- Features: Quick & Easy Mounting
- Temporary Light Source
- 10.5 watts & 950 Lumens
- ETL Damp Location
- 25,000 Hr. Rated
- Doesn’t impede sheet rock installation
- Product label: CONFORMS to STD. 1598
- CERTIFIED to CSA STD C22.2 No. 250.0
- Rating: 120VAC 60Hz 10.5W
- Model No: AXTD404-10.5W-40K-WH
- Made in China “ABI” LED2113
Model numbers
| Model | Description |
|---|---|
| AXTD404 | Temporary Round Disk, Jobsite Lighting |
| AXTD404-10.5W-40K-WH | Model No. printed on the product label shown on the page |
Specifications
| UL or ETL Listing | Damp Locations |
|---|---|
| Certifications | ETL |
| Dimensions | .59” Height x 4.13” Outside Diameter |
| Housing | Stamped Steel |
| Lens/Diffuser | UV Rated Polycarbonate |
| Voltage | AC 120v |
| Wattage | 10.5w |
| Lumens | 950lm |
| CRI | 90 |
| Kelvin | 40K (30K available by special order) |
| Dimmable | 10% on most dimmers |
| Operating Temp. | (-20˚ to -40˚C) (25˚C Nominal) |
| Mounting | Mounts to most 4” J boxes |
Options and ordering
Wattage
- 10.5W = 10.5 Watts
Kelvin/CCT
- 30K = 3000˚K*
- 40K = 4000˚K (30K by special order only)
Finish
- WH = White
Ordering example
AXTD404-10.5W-120V-30K-WH
