Temporary Vertical Disk, Jobsite Lighting

AXTD101

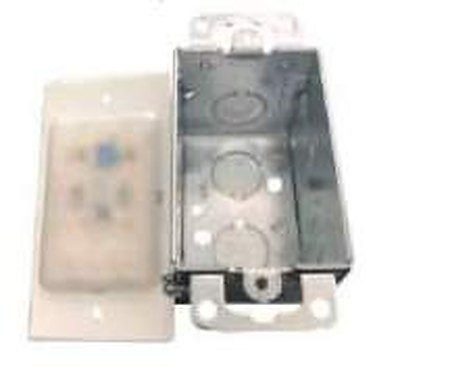

Install over the J-Box and it doesn’t have to be removed until you are ready to install a permanent light fixture. 2 screws and quick connects make installation a breeze!
Unlike permanent lighting, temporary lighting is installed on a job-site while working to ensure maximum illumination while working. The ability to keep the temporary fixture installed until after sheet rock is installed ensures maximum utility.
Features: Quick & Easy Mounting
Temporary Light Source
11 watts & 750 Lumens
ETL Damp Location
25,000 Hr. Rated
Doesn’t impede sheet rock installation
Standard Single-Gauge J-Box
Product label: CONFORMS to STD. 1598
CERTIFIED to CSA STD C22.2 No. 250.0
Rating: 120VAC 60Hz 10.5W
Model No: AXTD404-10.5W-40K-WH
Made in China “ABI” LED2113

Model numbers

Model	Description
AXTD101	Temporary Vertical Disk, Jobsite Lighting

UL or ETL Listing	Damp Locations
Certifications	ETL

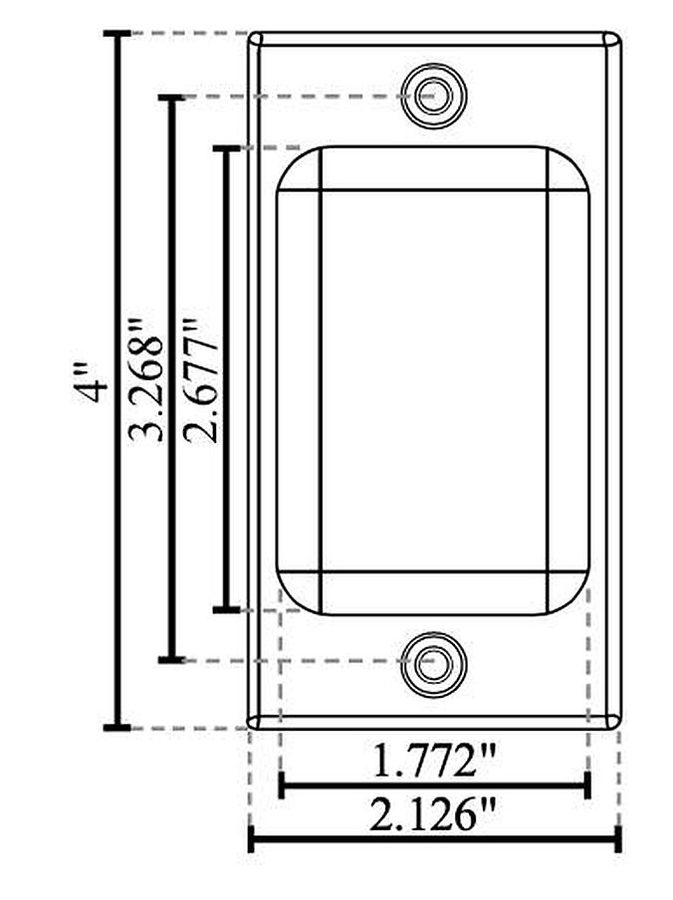

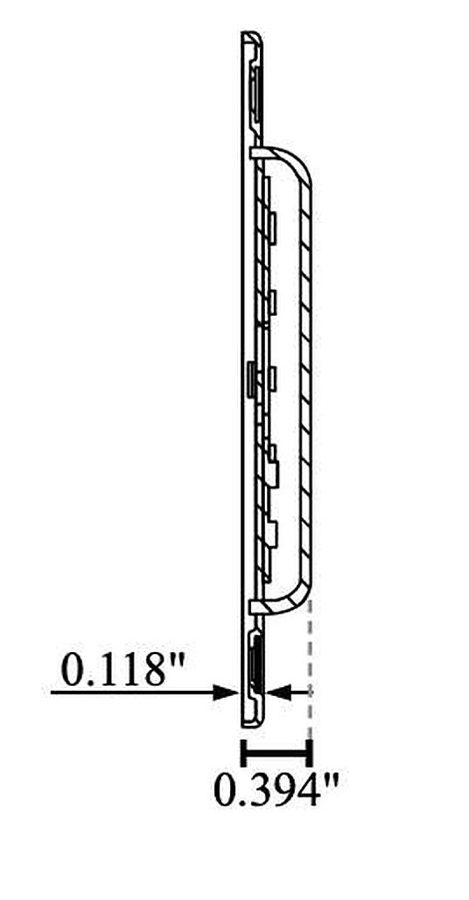

Dimensions	.4” Height x 2.126” Width x .394” Depth
Housing	Stamped Steel
Lens/Diffuser	UV Rated Polycarbonate
Voltage	AC 120v
Wattage	10.5w
Lumens	1,050lm
CRI	90
Kelvin	40K (30K available by special order)
Dimmable	10% on most dimmers
Operating Temp.	(-20˚ to -40˚C) (25˚C Nominal)
Mounting	Mounts to most 4” J boxes

AXTD101-11W-30K-WH
