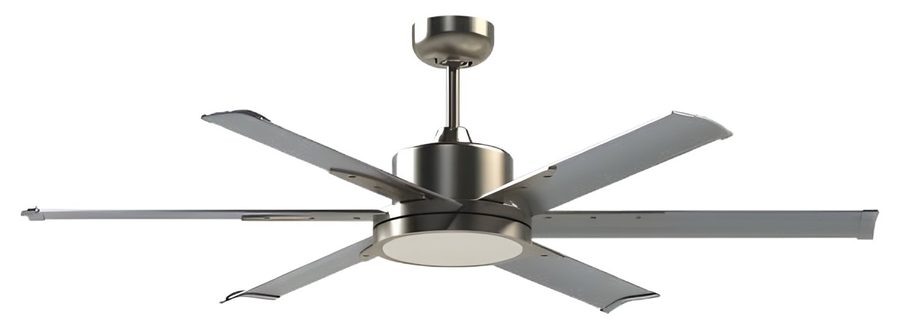

52”, or 72” 6-Blade Industrial Fan with LED Light Kit
AXCF9662-72-BK-BKAXCF9660-52-BN-BNAXCF9660AXCF9662
- These fans deliver contemporary industrial styling along with comfort and excellent value. Modern looks accentuate the long lasting and reliable fixtures.
- Bad Ass Fans© Provide a stylish and rugged option for any indoor or outdoor application.
- Several size and finish options are available to accentuate your space.
Model numbers
| Model | Description |
|---|---|
| AXCF9662-72-BK-BK | 52”, or 72” 6-Blade Industrial Fan with LED Light Kit |
| AXCF9660-52-BN-BN | 52”, or 72” 6-Blade Industrial Fan with LED Light Kit |
| AXCF9660 | 52”, or 72” 6-Blade Industrial Fan with LED Light Kit |
| AXCF9662 | 52”, or 72” 6-Blade Industrial Fan with LED Light Kit |
Specifications
| ETL | Damp location rated. Indoor/Outdoor Applications |
|---|---|
| Blade Sweep | 9660 = 52”, 9662 = 72” |
| Blades | 6 - Non Reversible - Aluminum |
| Lead Wire | 54” |
| Motor Type | 52” - DC - 100 x 20mm motor 72” - DC - 155 x 16mm motor |
| Voltage | 120v |
| Blade Pitch | 17˚ |
| Downrod Length | 6” |
| Speeds | 5 - Reversible Motor |
| Light Kit | Integrated LED - Frosted Glass |
| Control | Remote Control |
| Performance - 1 | CFM 7,260; Watts 35; CFM/Watt 207 |
| Performance - 2 | CFM 6,053; Watts 22; CFM/Watt 275 |
| Performance - 3 | CFM 4,886; Watts 12; CFM/Watt 407 |
| Performance - 4 | CFM 3,742; Watts 7; CFM/Watt 534 |
| Performance - 5 | CFM 2,540; Watts 5; CFM/Watt 508 |
| Light Kit | Wattage 15W; Kelvin 30K; Lumens 920; CRI 80 |
Options and ordering
Finish
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
- WH = White
- BK = Black
Blades
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
- WH = White
- BK = Black
Light Kit
- 15W = 15 Watt Integrated LED
Kelvin/CCT
- 30K = 3000˚Kelvin
Options
- RC = Remote Control
Ordering example
AXCF9662-BN-BN-15W-30K-RC
