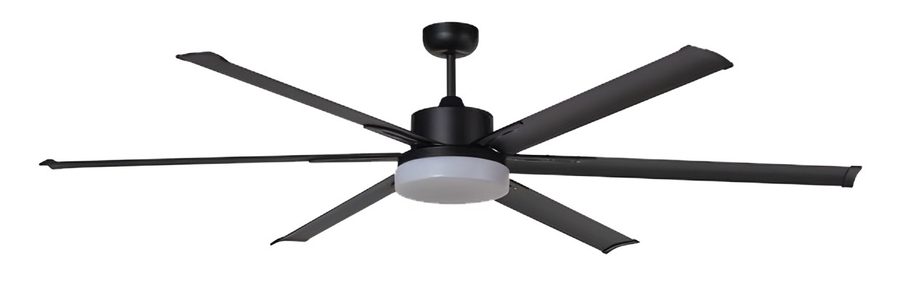

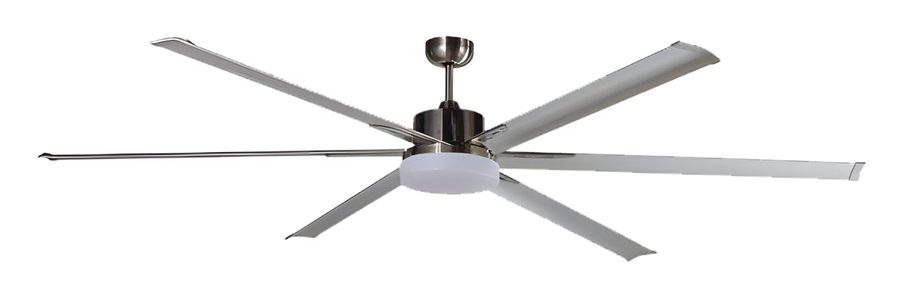

72” or 84” 6-Blade Industrial Fan with LED Light Kit
AXCF9650-72-WH-WHAXCF9652-84-ORB-ORBAXCF9652-84-BN-BNAXCF9650AXCF9652
These fans deliver contemporary industrial styling along with comfort and excellent value. Modern looks accentuate the long lasting and reliable fixtures.
Model numbers
| Model | Description |
|---|---|
| AXCF9650-72-WH-WH | 72” or 84” 6-Blade Industrial Fan with LED Light Kit |
| AXCF9652-84-ORB-ORB | 72” or 84” 6-Blade Industrial Fan with LED Light Kit |
| AXCF9652-84-BN-BN | 72” or 84” 6-Blade Industrial Fan with LED Light Kit |
| AXCF9650 | 72” or 84” 6-Blade Industrial Fan with LED Light Kit |
| AXCF9652 | 72” or 84” 6-Blade Industrial Fan with LED Light Kit |
Specifications
| ETL | Damp location rated. Indoor/Outdoor Applications |
|---|---|
| Blade Sweep | (AXCF9650) 72”, (AXCF9652) 84” |
| Blades | 6 - Non Reversible - Aluminum |
| Lead Wire | 54” |
| Motor Type | DC - 155 x 16mm motor |
| Voltage | 120v |
| Blade Pitch | 17˚ |
| Downrod Length | 6” |
| Speeds | 5 - Reversible Motor |
| Light Kit | Integrated LED - Frosted Glass |
| Control | Remote Control |
| Performance - 1 | CFM 7,114; Watts 35.1; CFM/Watt 203 |
| Performance - 2 | CFM 6,120; Watts 22.8; CFM/Watt 268 |
| Performance - 3 | CFM 5,042; Watts 16.1; CFM/Watt 313 |
| Performance - 4 | CFM 4,021; Watts 10.4; CFM/Watt 387 |
| Performance - 5 | CFM 2,985; Watts 5.5; CFM/Watt 543 |
| Light Kit | Wattage 15W; Kelvin 30K; Lumens 920; CRI 80 |
Options and ordering
Finish
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
- WH = White
Blades
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
- WH = White
Light Kit
- 15W = 15 Watt integrated LED
Kelvin/CCT
- 30K - 3000˚Kelvin
Options
- RC = Remote Control
Ordering example
AXCF9652-BN-BN-15W-30K-RC
