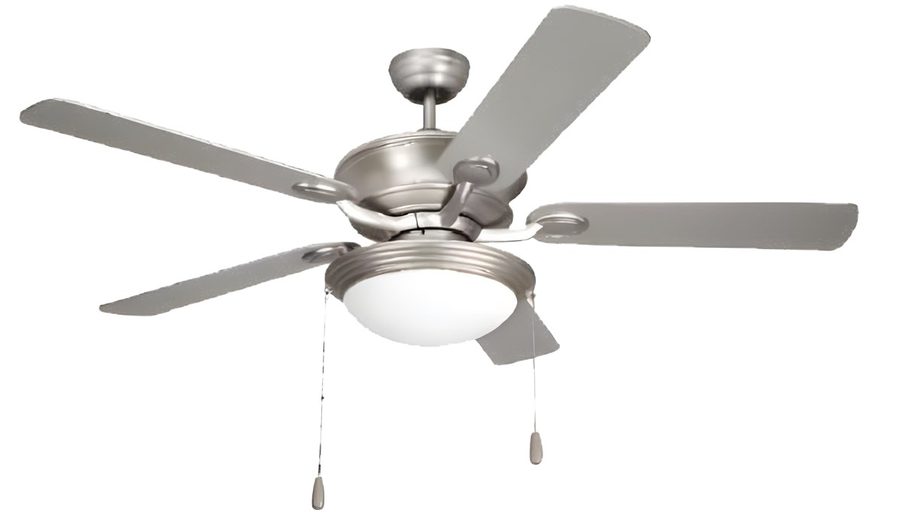

52” 5-Blade Builder Fan with Optional Light Kit
AXCF816-ORB-DCH/WAL-AXLK9330ORBAXCF816-BN-BN-AXLK9330BNAXCF816
- These fans deliver contemporary European styling along with comfort and excellent value. Unique design fans have an essence of class and destination.
- Can be hung as flush mount or with downrod
Model numbers
| Model | Description |
|---|---|
| AXCF816-ORB-DCH/WAL-AXLK9330ORB | Standard Blade Package Reversible Dark Cherry / Walnut Blades |
| AXCF816-BN-BN-AXLK9330BN | Standard Blade Package All Brushed Nickel Blades |
| AXCF816 | 52” 5-Blade Builder Fan with Optional Light Kit |
Specifications
| ETL | Indoor Applications |
|---|---|
| Blade Sweep | 52” |
| Blades | 5 - Reversible - MDF |
| Lead Wire | 54” |
| Motor Type | AC - 153 x 18mm motor |
| Voltage | 120v |
| Blade Pitch | 11˚ |
| Downrod Length | 6” |
| Speeds | 3 - Reversible Motor |
| Light Kit | Adaptable (Sold Separately) |
| Socket | 2 x E26 10w LED Bulbs, 30K, 800lm (not included) |
| Control | Pull Chain |
| Performance - High | CFM 5,232; Watts 57.4; CFM/Watt 91.15 |
| Performance - Medium | CFM 3,496; Watts 33; CFM/Watt 105.94 |
| Performance - Low | CFM 2,254; Watts 13.6; CFM/Watt 165.74 |
| Light Kit LK9330-20W-30K-PC | Wattage 20w (2x 10W LED); Kelvin 30K; Lumens 1,600; CRI 80 |
Options and ordering
Finish
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
Blades
- BN = Brushed Nickel
- DCH/WAL = Dark Cherry/Walnut
- ORB = Oil Rubbed Bronze
Light Kit
- Blank = None
- LK9330-20W = 2x 10W E26
Kelvin/CCT
- 30K = 3000˚Kelvin
Options
- PC = Pull Chain
Ordering example
AXCF816-BN-BN-LK9330-20W-30K-PC
