50” 3-Curved Blade Fan
AXCF800-BN-BNAXCF800-BN-WALAXCF800-ORB-ORBAXCF800-BK-BKAXCF800-WH-WHAXCF800
These fans deliver contemporary European styling along with comfort and excellent value. Unique design fans have an essence of class and destination.
Model numbers
| Model | Description |
|---|---|
| AXCF800-BN-BN | Standard Blade Package All Brushed Nickel Blades |

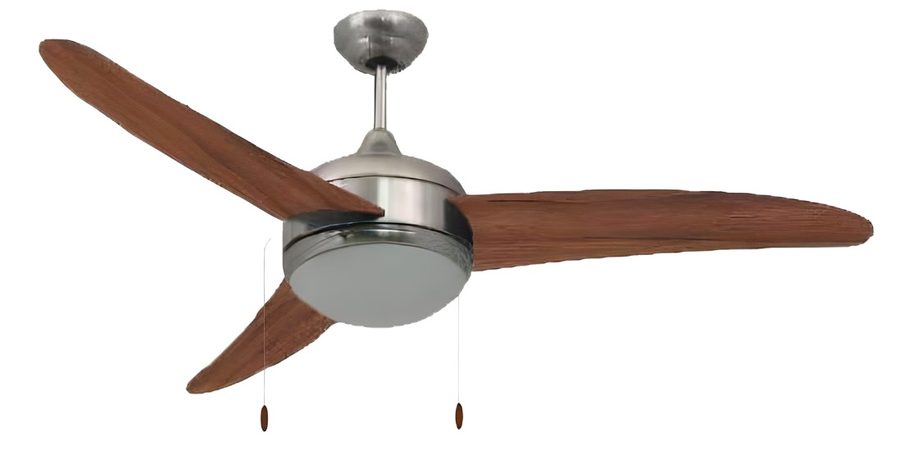

| AXCF800-BN-WAL | Standard Blade Package All Walnut Blades |

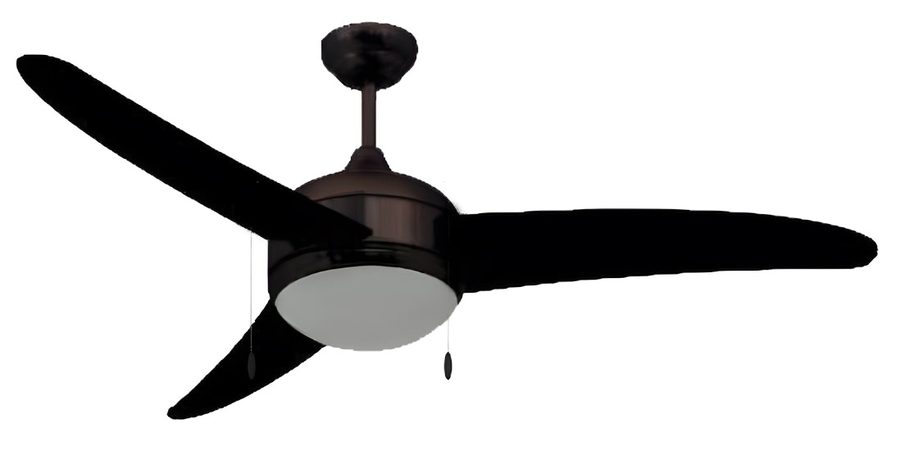

| AXCF800-ORB-ORB | Standard Blade Package All Oil Rubbed Bronze Blades |

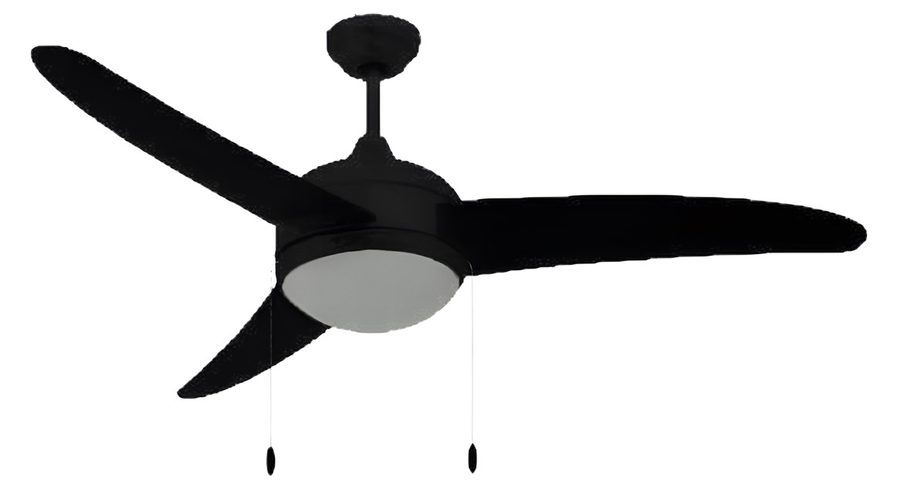

| AXCF800-BK-BK | Standard Blade Package All Black Blades |

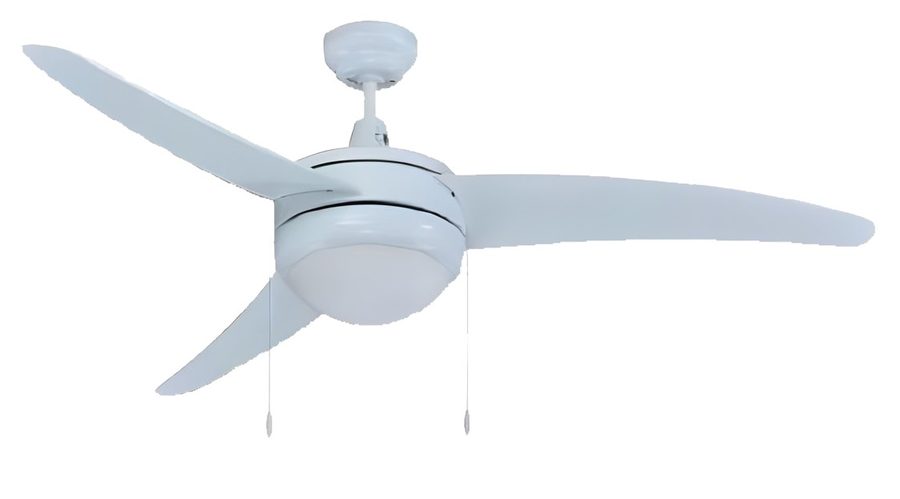

| AXCF800-WH-WH | Standard Blade Package All White Blades |
| AXCF800 | 50” 3-Curved Blade Fan |
Specifications
| ETL | Indoor Applications |
|---|---|
| Blade Sweep | 52” |
| Blades | 3 - Non Reversible - Plywood |
| Lead Wire | 54” |
| Motor Type | AC - 153 x 15mm motor |
| Voltage | 120v |
| Blade Pitch | 12˚ |
| Downrod Length | 6” |
| Speeds | 3 - Reversible Motor |
| Light Kit | Satin White Glass Diffuser |
| Socket | 2 x E26 10w LED Bulbs, 30K, 800lm (not included) |
| Control | Pull Chain |
| Performance - High | CFM 5,313; Watts 54.6; CFM/Watt 97 |
| Performance - Medium | CFM 3,363; Watts 25; CFM/Watt 134 |
| Performance - Low | CFM 2,060; Watts 9.3; CFM/Watt 221 |
| Light Kit | Wattage 20w (2x 10W LED); Kelvin 30K; Lumens 1,600; CRI 80 |
Options and ordering
Finish
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
- BK = Black
- WH = White
Blades
- BN = Brushed Nickel
- WAL = Walnut
- ORB = Oil Rubbed Bronze
- BK = Black
- WH = White
Light Kit
- 20W = 2x 10W E26
Kelvin/CCT
- 30K = 3000˚Kelvin
Options
- PC = Pull Chain
Ordering example
AXCF800-BN-WAL-20W-30K-PC
AXCF800-BK-BK-20W-30K-PC
