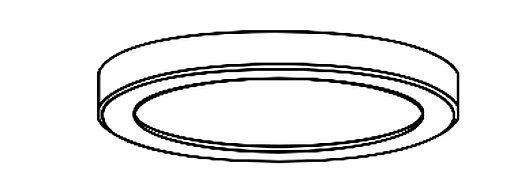

8” Ultra Thin Round Surface Mount Disk
AX608AX608-15WAX608-18W
- Replaces 8” Recessed Can Light
- LED flush mounts add class to any decor. Low profile design ideally suited for showers, lobbies, corridors, conference rooms, common spaces, kitchenettes, and interiors in commercial, hospitality, retail, and residential environments.
Model numbers
| Model | Description |
|---|---|
| AX608 | 8” Ultra Thin Round Surface Mount Disk |
| AX608-15W | Available Finishes: BN • ORB • WH; Voltage: AC 120V; Wattage: 15W; Kelvin/ CCT: 30K • 40K; Dimensions: 9” OD x .79” H; Lumens: 1,050; CRI: 90; Dimmable: Tri-arc; Special Functions: Surface, Wet |
| AX608-18W | Available Finishes: BN • ORB • WH; Voltage: AC 120V; Wattage: 18W; Kelvin/ CCT: 30K • 40K; Dimensions: 9” OD x .79” H; Lumens: 1,600; CRI: 90; Dimmable: Tri-arc; Special Functions: Surface, Wet |
Specifications
| UL or ETL Listing | Wet Locations |
|---|---|
| Certifications | Title 24, JA8 Certified DLC Certified Energy Star Qualified |
| Dimensions | .79” Height x 9” Outside Diameter |
| Housing | Stamped Steel |
| Lens/Diffuser | Flat Glass Lens |
| Voltage | AC 110-120v - Driverless |
| Wattage | 15w, 18w |
| Lumens | 1,050, 1,600 |
| CRI | 90 |
| Kelvin | 30K, 40K |
| Flicker | (T24, JA8) Flicker Free |
| Dimmable | Tri-arc |
| Operating Temp. | (-20˚ to -40˚C) (25˚C Nominal) |
| Surge Protection | 1 kv |
| Mounting | Ceiling, includes all necessary hardware. Mounts to most 4” x 4” J boxes. Suitable for installation within closets and/or storage spaces per NEC code 410.16. |
Options and ordering
Wattage
- 15W = 15 Watts
- 18W = 18 Watts
Kelvin/CCT
- 30K = 3000˚K
- 40K = 4000˚K
Finish
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
- WH = White
Ordering example
AX608-15W-30K-BN
